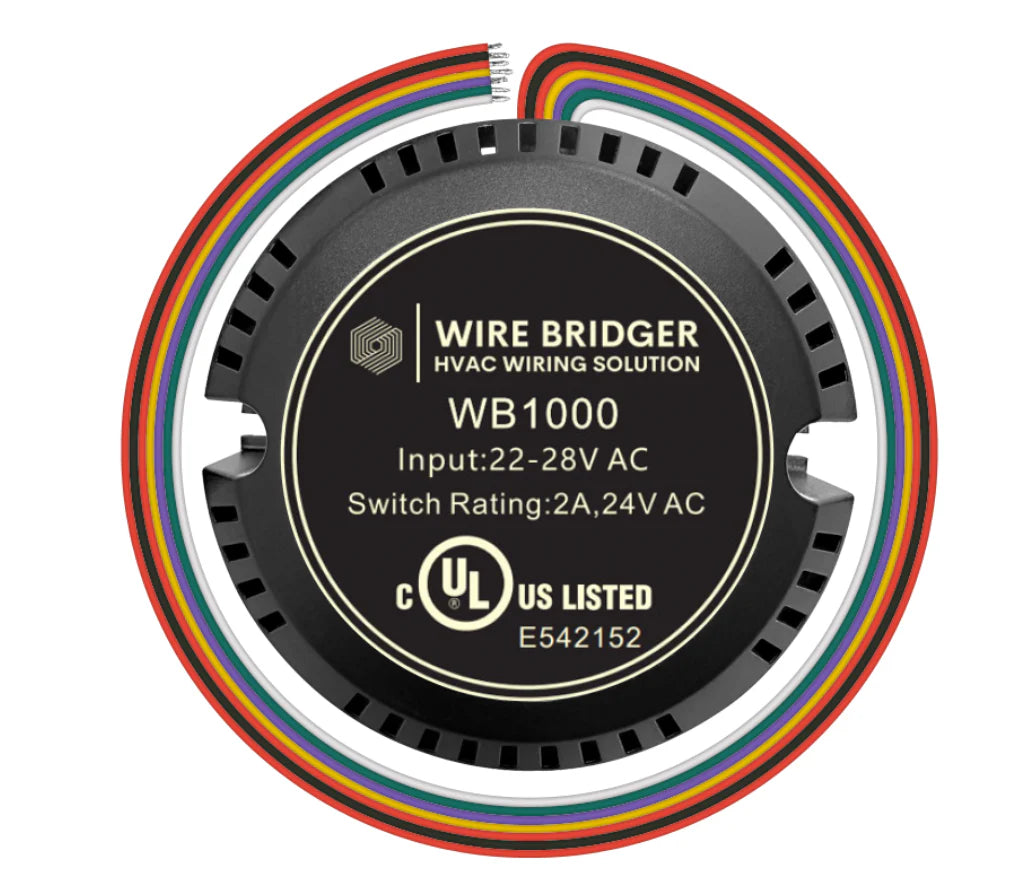

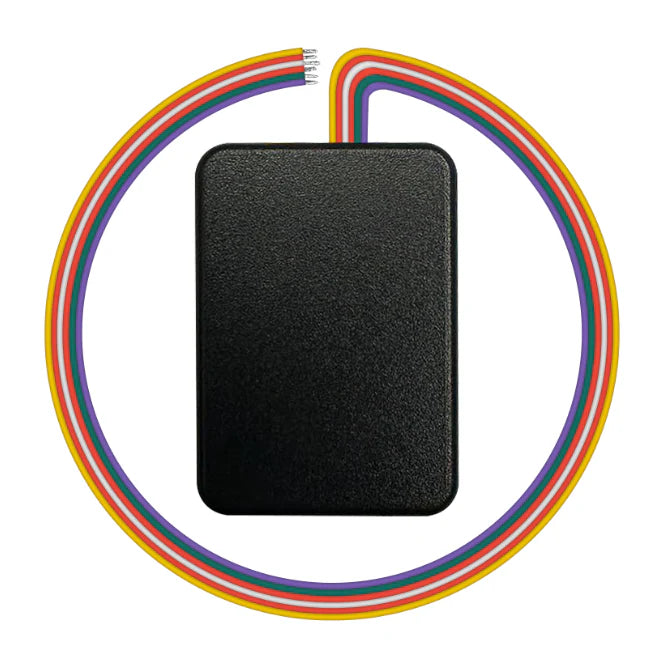

WIRE BRIDGER WB1000 Transmitter and Collector

WIRE BRIDGER WB1000

The WIRE BRIDGER WB1000 is an innovative HVAC wiring solution that enhances connectivity between your thermostat and indoor or outdoor units. By adding two additional control wires, the WB1000 ensures seamless communication and optimal performance across all compatible systems.

Key Features

• Additional Control Wires: Adds two extra control wires between the thermostat and the HVAC units, enabling more advanced control capabilities.
• Universal Compatibility: Compatible with all 24V AC heating and cooling systems, making it a versatile choice for various HVAC setups.
• Common Connection (C) Provision: Can be used to provide a common (C) connection, facilitating power for smart thermostats and other advanced HVAC components.

Overview

The WIRE BRIDGER WB1000 is designed to streamline HVAC installations and upgrades. Whether you’re retrofitting an existing system or setting up a new HVAC configuration, the WB1000 offers flexible wiring options that reduce installation time and simplify the overall process. Its robust design ensures reliable performance, making it an essential component for modern HVAC systems.

Benefits

• Reduced Installation Time: Simplifies the wiring process, allowing for quicker and more efficient installations.
• Easy System Upgrades: Facilitates seamless upgrades to existing HVAC systems without the need for extensive rewiring.
• Enhanced Compatibility: Supports a wide range of HVAC units, ensuring versatility and adaptability to different setups.
• Improved Performance: Ensures optimal communication between thermostat and HVAC units, enhancing overall system performance.

Installation Guide

Installing the WIRE BRIDGER WB1000 is straightforward and user-friendly. Follow these simple steps to integrate the WB1000 into your HVAC system:

1. Turn off the power to your HVAC system to ensure safety during installation.
2. Locate the thermostat and the indoor/outdoor HVAC units.
3. Connect the two additional control wires from the WB1000 between the thermostat and the HVAC units.
4. If providing a common (C) connection, connect the C wire to the designated terminal.
5. Secure all connections and ensure that wires are properly insulated.
6. Restore power to the HVAC system and test the functionality to confirm successful installation.

Compatibility

The WB1000 is engineered to work seamlessly with a wide range of 24V AC heating and cooling systems. Whether you’re using a traditional HVAC setup or a more modern smart system, the WB1000 provides the necessary connectivity to ensure smooth operation and enhanced control.

Why Choose WB1000?

• Versatility: Suitable for both new installations and upgrades to existing systems.
• Reliability: Built with high-quality materials to ensure long-lasting performance.
• Ease of Use: Designed for straightforward installation without the need for specialized tools or expertise.
• Cost-Effective: Reduces labor costs and installation time, providing a cost-efficient solution for HVAC wiring needs.
